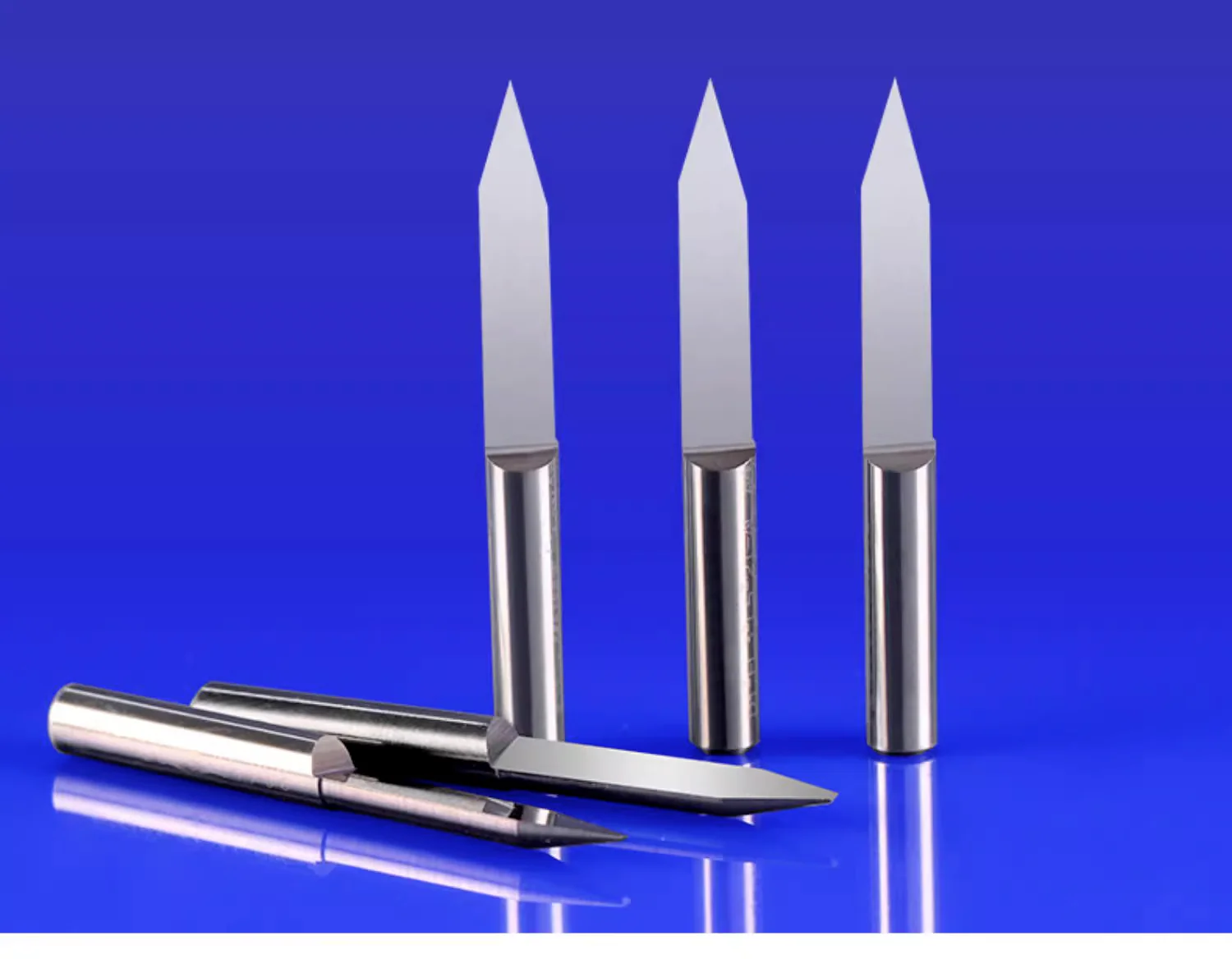

Single Flute Engraving Bit - 1/8″ Shank

The Single Flute Engraving Bit typically features a single cutting edge that extends from the tip of the bit. This singular flute creates a clean, well-defined edge in the material being engraved, ideal for intricate detailing.

Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide

Applications:
Curve surface milling, Relief milling, Small text engraving, etc.

Materials:
Wood, Plastics, Composite materials, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
0.1mm*30° Engraving	-	-	-	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.2mm*30° Engraving	-	-	-	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.3mm*30° Engraving	-	-	-	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.4mm*30° Engraving	-	-	-	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.5mm*30° Engraving	-	-	-	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	-	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
