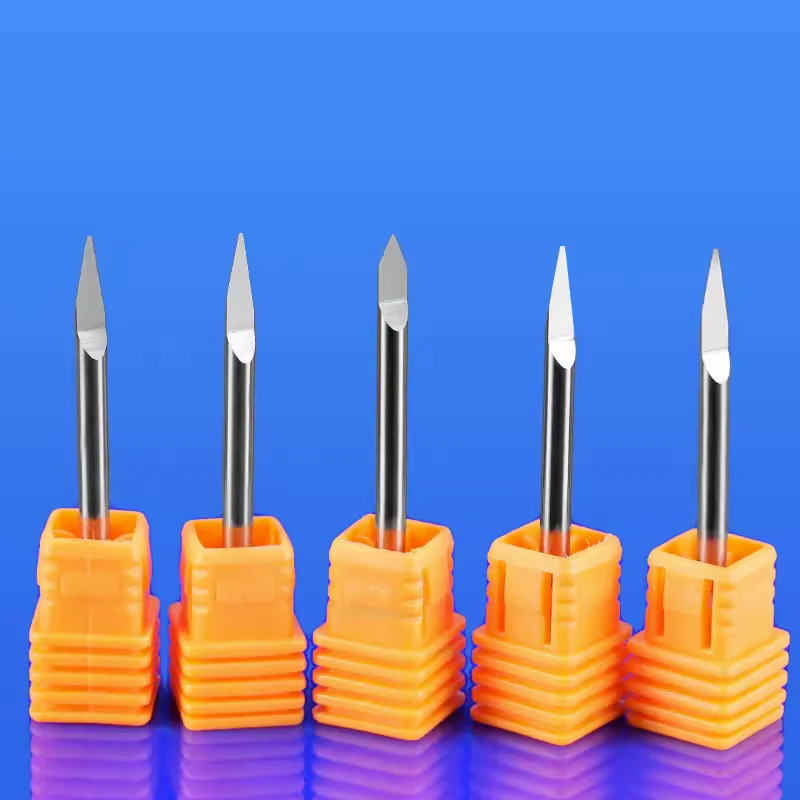

Single Flute Engraving Bit for Metal - 1/8″ Shank

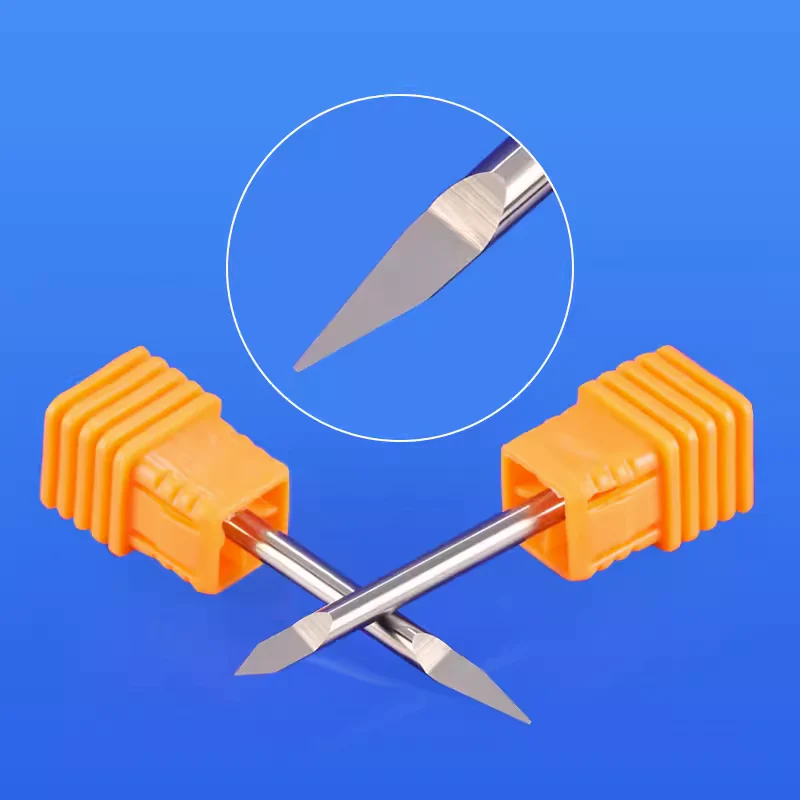

The Single Flute Engraving Bit typically features a single cutting edge that extends from the tip of the bit. This singular flute creates a clean, well-defined edge in the material being engraved, ideal for intricate detailing.

Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide

Applications:
PCB trace Isolating, Curve surface milling, Relief milling, Small text engraving, etc.

Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, PCB, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
0.1mm*60° Engraving(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.2mm*30° Engraving(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.3mm*30° Engraving(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.4mm*30° Engraving(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
0.5mm*30° Engraving(Metal)	RPM:12000 Feed:500 PFeed:200 DOC:0.2	RPM:12000 Feed:300 PFeed:100 DOC:0.1	-	RPM:12000 Feed:300 PFeed:100 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:0.1	RPM:12000 Feed:1000 PFeed:500 DOC:1	RPM:12000 Feed:1000 PFeed:500 DOC:2
