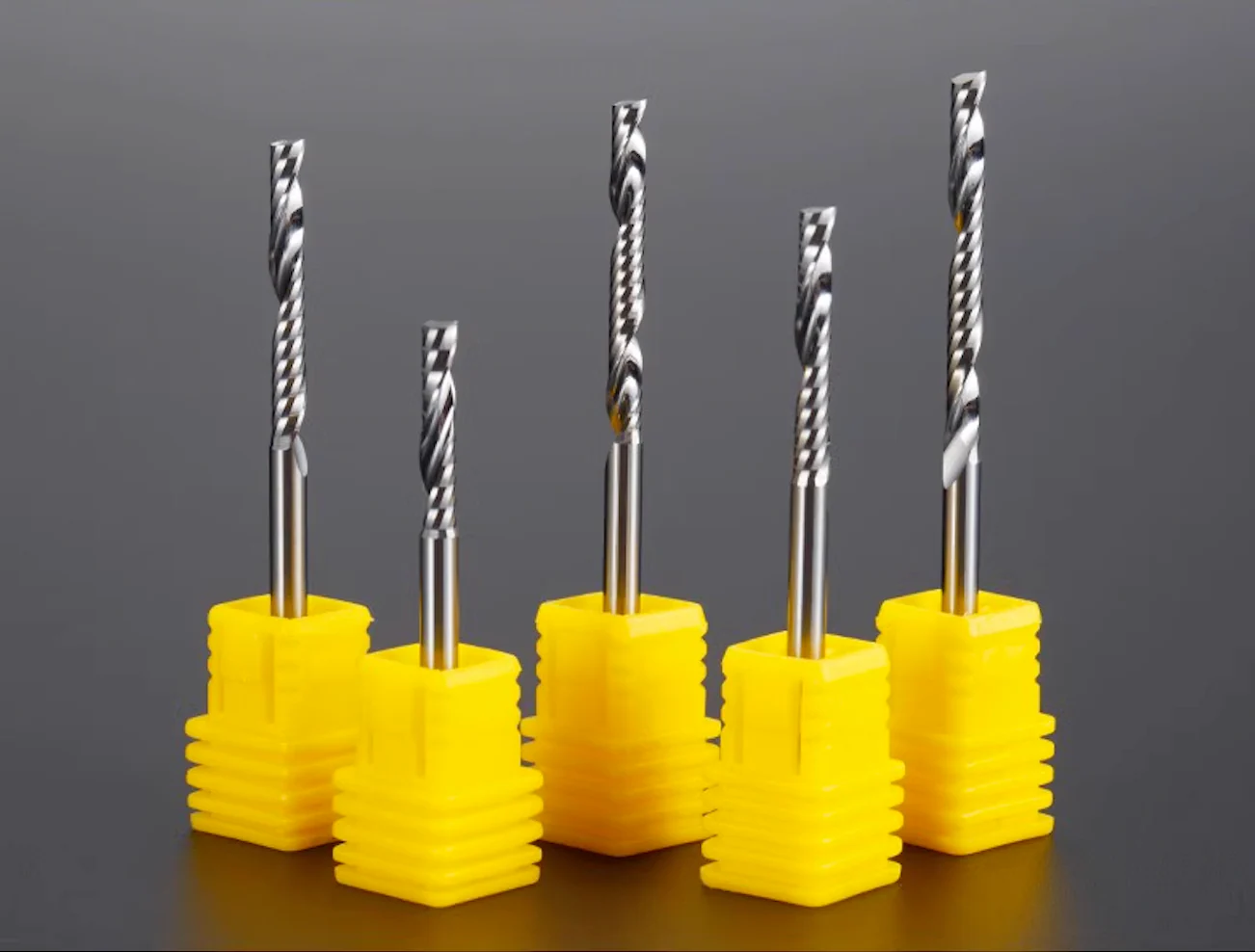

Spiral 'O' Single Flute Bit - 1/8″ Shank

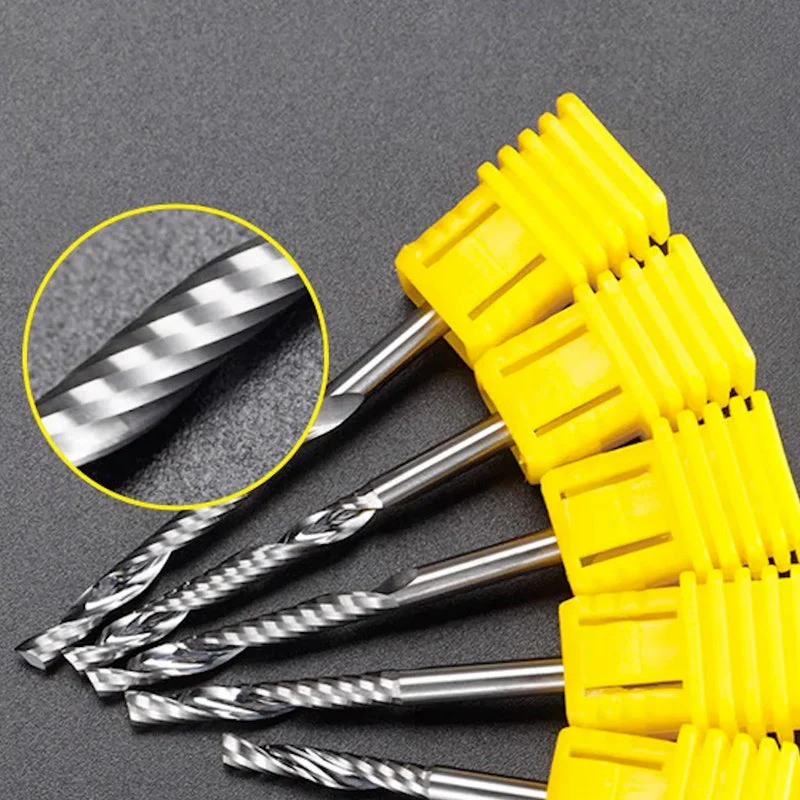

The Spiral 'O' Single Flute Bit allows for superior chip evacuation, reducing the risk of chip re-cutting and ensuring a cleaner cut.

Specifications:
Shank Diameter: 3.175mm
Total Length: 38mm or more
Material: Solid Carbide

Applications:
Sheet/Plate/Block Contour cutting, Face cleaning, Pocket milling, and Hole boring, etc.

Materials:
Wood, Plastics, Composite materials, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
1*3mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.5*8mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
2*12mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	-	RPM:10000 Feed:1000 PFeed:300 DOC:0.5	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.5*15mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
3.175*17mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
3.175*25mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
3.175*32mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2
3.175*42mm Flat End	-	-	-	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	-	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:2

Select Specs (Cutting Diameter * Cutting Length)

From $1.03

Original: $3.45

-70%

Spiral 'O' Single Flute Bit - 1/8″ Shank—

$3.45

$1.03
