Two Flute Ball Nose Bit - 1/8″ Shank

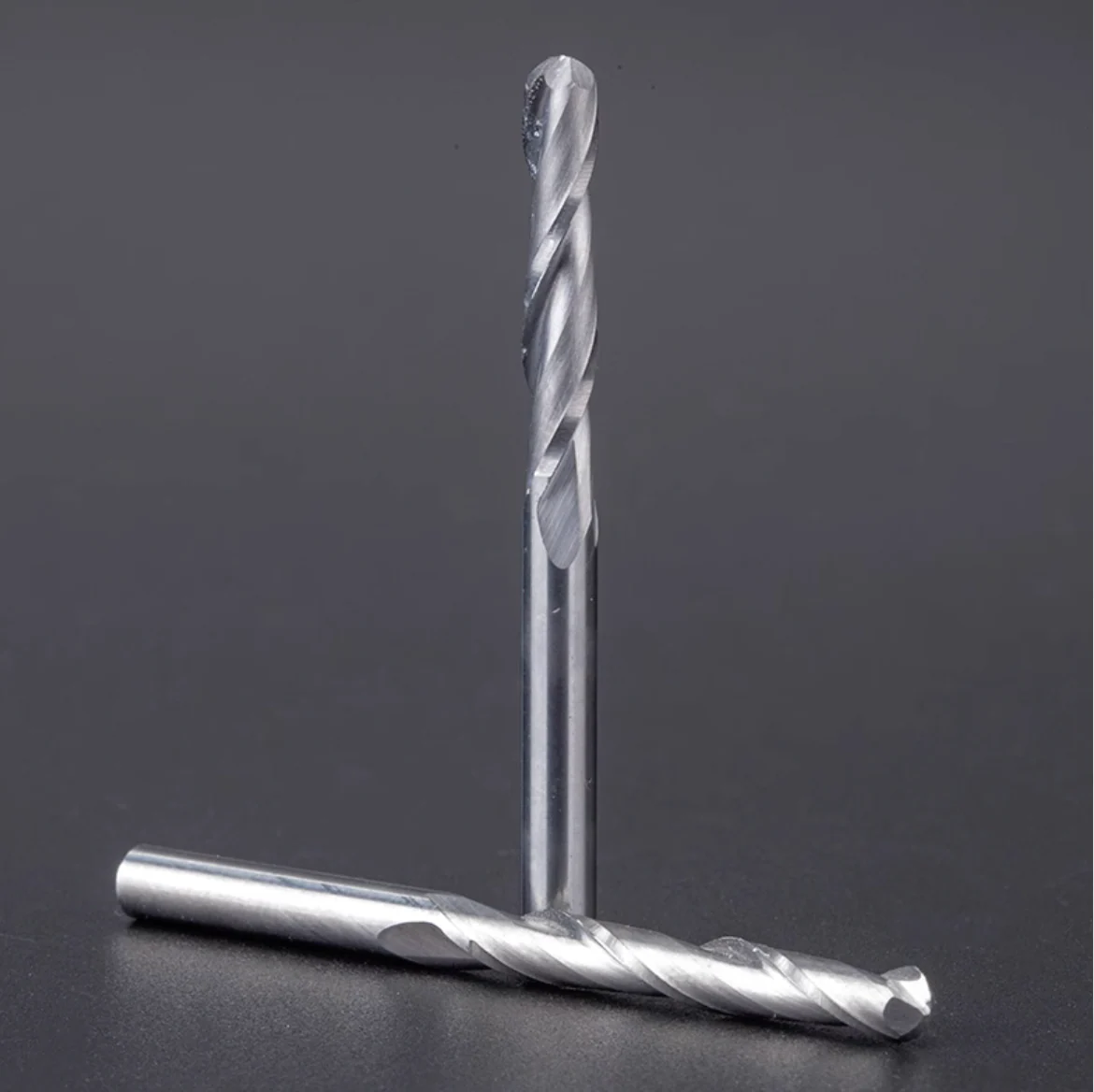

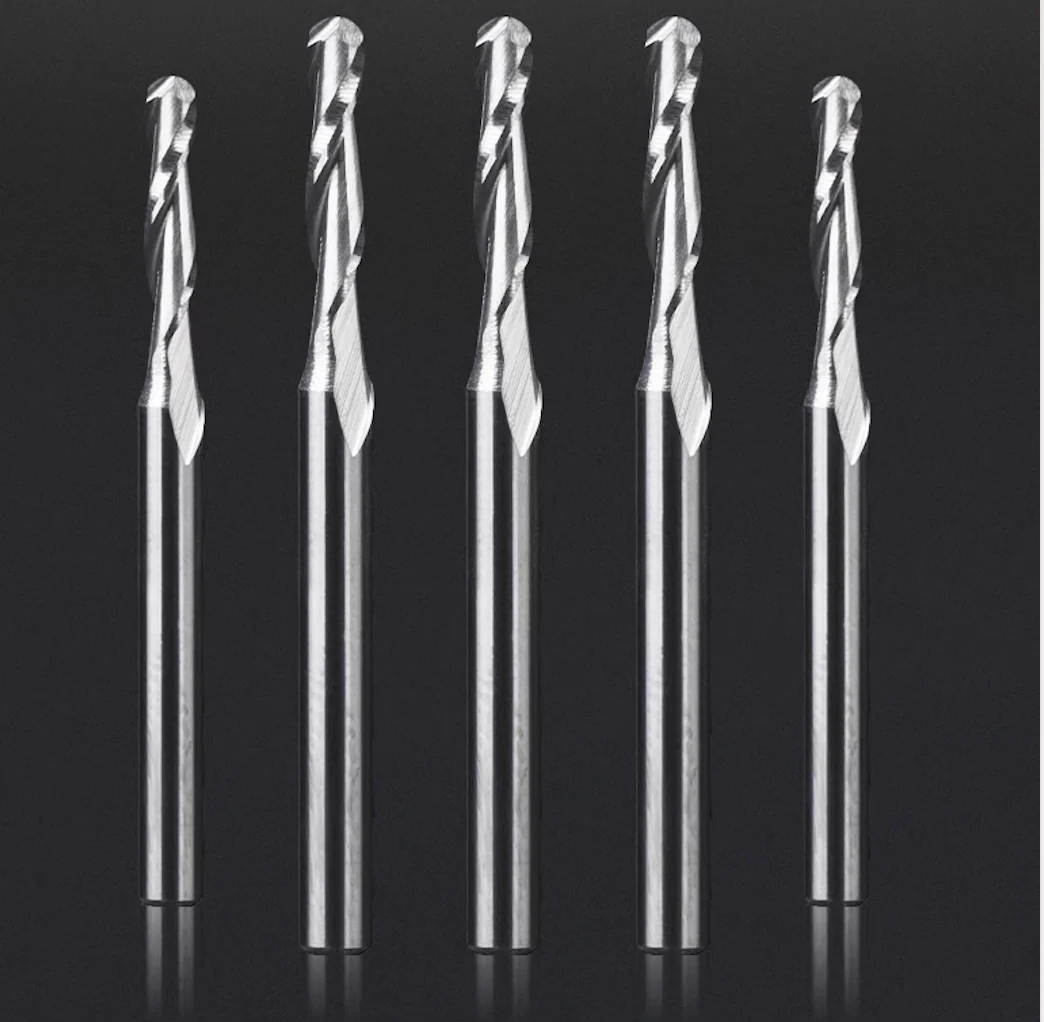

The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.

Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide

Applications:
Curve surface milling, Relief milling, etc.

Materials:
Wood, Plastics, Composite materials, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
1*4mm ball nose	-	-	-	-	RPM:12000 Feed:500 PFeed:200 DOC:1	-	RPM:12000 Feed:500 PFeed:200 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:2
1.5*8mm ball nose	-	-	-	-	RPM:12000 Feed:500 PFeed:200 DOC:1	-	RPM:12000 Feed:500 PFeed:200 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:2
2*12mm ball nose	-	-	-	-	RPM:12000 Feed:500 PFeed:200 DOC:1	-	RPM:12000 Feed:500 PFeed:200 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:2
2.5*15mm ball nose	-	-	-	-	RPM:12000 Feed:500 PFeed:200 DOC:1	-	RPM:12000 Feed:500 PFeed:200 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:2
3.175*22mm ball nose	-	-	-	-	RPM:12000 Feed:500 PFeed:200 DOC:1	-	RPM:12000 Feed:500 PFeed:200 DOC:1	RPM:12000 Feed:500 PFeed:200 DOC:2

Select Specs (Cutting Diameter * Cutting Length)

From $4.61

Two Flute Ball Nose Bit - 1/8″ Shank—

$4.61
